Pakistan.AI

ISIC-2024 SLICE-3D
Skin Cancer Detection

Final Project · Neural Networks
Raja, Muhammad Junaid Ali AsifM11217073
Sultan, AdilM11217078
Hassan, Shahzaib AhmedM11217081
Instructor Prof. Hsuan-Ting Chang
June 18, 2026
junaidaliop.github.io/isic2024-tbp github.com/junaidaliop/isic2024-tbp
ISIC-2024 SLICE-3D · Pakistan.AI
Clinical Task

Melanoma Triage From Total-Body Photography

  • Melanoma is highly survivable when excised early; mortality rises sharply once it metastasises.
  • The clinical bottleneck is triage: ranking which lesions warrant dermatologist review.
  • ISIC-2024 frames this as a ranking task over lesions imaged by 3D total-body photography (TBP), not dermoscopy.
  • Each lesion is a small square crop plus per-lesion tabular metadata.
Objective: rank a patient's lesions so the highest-risk are reviewed first, using only signals a routine total-body scan already captures.
ISIC-2024 SLICE-3D · Pakistan.AI
Dataset

SLICE-3D: 401,059 Lesion Crops

401,059
lesion crops
393
malignant
0.098%
prevalence
1,042
patients

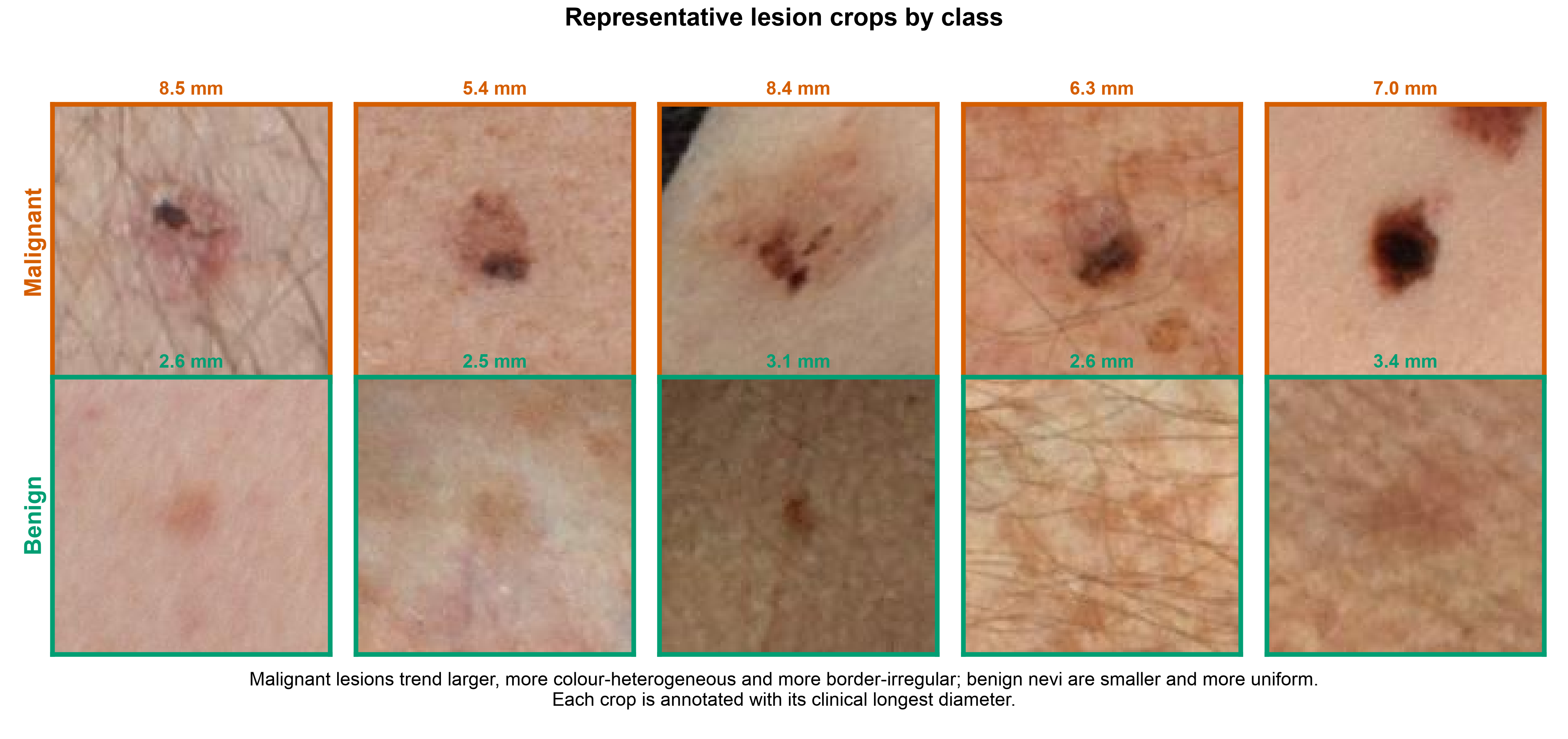

Representative benign and malignant lesion crops
Malignant crops (top) trend larger, more colour-heterogeneous and more border-irregular than benign nevi (bottom).
  • Square TBP tiles, 61–239 px (median 131 px).
  • 393 malignant against 400,666 benign.
  • One cancer per ~1,021 crops — a 0.098% base rate.
  • Lesion size and colour heterogeneity rise with malignancy, the first signal the experts exploit.
ISIC-2024 SLICE-3D · Pakistan.AI
Exploratory Analysis

What the Data Reveals

Patient structure: correlated lesions per patient
Per-patient lesion counts; malignant-carrying patients hold most of the data
Ugly-duckling: the malignant lesion tops its patient's own size distribution
Three patients: the malignant lesion sits at the top of its own patient size distribution
  • Lesions are patient-grouped: 1,042 patients, median 241 crops each; the 259 malignant-carrying patients hold 39% of all crops.
  • Patient-relative deviations (ugly-duckling) carry ~65% of GBDT gain; 45.7% of cancers fall in the top 10% of their own patient's lesion sizes.
  • Head/neck site runs at ~7× the baseline malignant rate despite being the smallest site, a strong site prior.
  • Hue tbp_lv_H alone reaches univariate AUC 0.81; malignant lesions are ~2× larger than benign.
ISIC-2024 SLICE-3D · Pakistan.AI
Evaluation

Class Imbalance and the Metric

Class imbalance on a log scale and malignant count per fold
Class counts (log scale) and the 77–83 malignant cases per fold.
  • At 0.098% prevalence, plain AUC and accuracy reward the wrong region of the curve.
  • Scoring is restricted to the high-sensitivity tail: TPR from 0.80 to 1.0.
  • Range [0, 0.20]: random ≈ 0.02, perfect = 0.20.
$$ \mathrm{pAUC}_{80} = \int_{0.80}^{1.0}\!\big(1-\mathrm{FPR}\big)\, d(\mathrm{TPR}) $$

Official ISIC-2024 metric. Every number here is OOF pAUC@80%TPR on the same frozen folds.

ISIC-2024 SLICE-3D · Pakistan.AI
Validation

Patient-Grouped, Target-Stratified 5-Fold

5-fold rotation → out-of-fold (OOF) predictions
Fold 1 Fold 2 Fold 3 Fold 4 Fold 5 predict train train train train Round 1 train predict train train train Round 2 train train predict train train Round 3 train train train predict train Round 4 train train train train predict Round 5 held-out fold: predicted 4 folds: train the model Concatenate the 5 held-out fifths = OOF: one prediction per lesion, from a model that never saw it.
  • StratifiedGroupKFold: grouped by patient, stratified on the label.
  • No patient straddles two folds.
  • One frozen folds.parquet; every model reads the identical split.
  • Each fold holds 77–83 positives, so none is starved of signal.
Why it matters

If a patient's moles appear in both train and validation, the model memorises the person, not the disease, the source of the competition's public-to-private shake-ups.

ISIC-2024 SLICE-3D · Pakistan.AI
Approach

Two Experts and a Rank-Average Stack

SLICE-3D · 401,059 crops · 1,042 patients
→
Patient-grouped StratifiedGroupKFold · 5 folds · SEED=42 · frozen, no patient straddles folds
Tabular
Features: geometry · colour/hue · size ratios · 3D position · patient-relative ugly-duckling (pdev/prank/pxc) · per-fold target encoding
→
Bagged LightGBM (5-seed) + CatBoost, rank-blendOOF pAUC 0.16890
convnextv2_nano @224 · neg-undersample ~1:1 · BCE+LS · EMA(0.995) · mixup · TTA
→
OOF malignancy prob (+ embedding)OOF pAUC 0.15821
Tabular OOF
0.16890
+
Image OOF
0.15821
→
Rank-average
param-free
→
Final OOF 0.17376
15.8M params · 2.46 GFLOPs · 61 ms CPU
Tabular expert carries most of the score (0.16890); the image expert adds a complementary signal (0.15821); the param-free rank average lifts both to 0.17376. No external or synthetic data.
ISIC-2024 SLICE-3D · Pakistan.AI
Tabular Expertintrinsic + patient-relative features, bagged gradient boosting
  • Intrinsic features: lesion geometry, colour, size ratios.
  • Patient-relative deviations encode the ugly-duckling sign, a lesion that departs from its patient's own moles.
  • 392 of 393 cancers share a patient with benign moles, so within-patient deviation is computable for nearly every positive.
  • Bagged LightGBM ensembled with CatBoost; early-stop on pAUC@80%TPR.
Patient-relative features supply 6 of the top 7 by gain and account for ~65% of total feature importance.
Table 1. Tabular LightGBM progression (OOF, leak-verified).
ConfigurationOOF pAUC@80%TPR
Step 0: broken: is_unbalance + AUC early-stop0.09941
Step 1: fixed early-stopping / objective0.11826
Step 2: wide patient-relative features0.14420
Step 3: bagged + cross feats + CatBoost0.16890
ISIC-2024 SLICE-3D · Pakistan.AI
Image Expertsmall ImageNet-pretrained backbones at 128–224 px
  • Small pretrained backbones; ImageNet weights carry no skin-cancer labels, preserving the no-external-data claim.
  • Per-epoch negative undersampling against 0.098% prevalence.
  • BCE with label smoothing, classical transV2 augmentation, light EMA, and mixup.
  • Each backbone emits an OOF malignancy probability plus an embedding, stacked into the GBDT.
Resolution and light regularisation on a small backbone is the sweet spot: convnextv2_nano gains +0.005 from 128 to 224 px; stronger EMA over-smooths and hurts.
Image backbones (OOF pAUC@80%TPR).
BackbonepAUC
ConvNeXtV2-nano @2240.15821
ConvNeXtV2-tiny @2240.15824
ConvNeXtV2-nano @1280.15311
EfficientViT-b0 @1280.13706
ViT-tiny @1280.13654
MobileNetV4-small @1280.11242

nano @224 matches tiny @224 at half the cost; chosen as the image expert.

OOF embedding t-SNE — the expert separates malignant from benign
t-SNE of the image expert's OOF embeddings; malignant lesions cluster apart from benign
ISIC-2024 SLICE-3D · Pakistan.AI
Combiner

Rank-Average Stack

$$ \hat s_i = \tfrac{1}{2}\Big( r\big(p^{\text{tab}}_i\big) + r\big(p^{\text{img}}_i\big) \Big),\qquad r(p_i)=\tfrac{\operatorname{rank}(p_i)}{N}\in(0,1] $$
Worked example — ranks rescue an under-ranked cancer
Lesion GBDT prob → rank CNN prob → rank avg rank final L1 0.91 → 5 0.40 → 3 4.0 2nd L2 ★ 0.62 → 4 0.88 → 5 4.5 1st L3 0.30 → 3 0.55 → 4 3.5 3rd L4 0.12 → 2 0.20 → 2 2.0 4th L5 0.05 → 1 0.10 → 1 1.0 5th ★ L2 is the true cancer. GBDT under-ranks it (4th); the CNN ranks it 1st. The average rank rescues L2 to 1st place — neither expert alone put it on top.
  • Each expert's scores are rank-transformed, then equally averaged.
  • Tabular and image make complementary errors; the average sits above both on every fold.
  • Tabular 0.16890 + image 0.15821 → stack 0.17376.
Why trivial wins

A rank average has zero learned parameters, so it cannot overfit the 393 positives. A learned meta-stacker reaches only 0.17108; a learned per-lesion gate falls to 0.15007, below tabular alone.

ISIC-2024 SLICE-3D · Pakistan.AI
Results

Ranking and the Operating Point

Confusion matrix at the 80% TPR operating point
Illustrative 80%-TPR point: 315/393 caught at 95.2% specificity. The score is pAUC@80%TPR — rank-based over the high-sensitivity band — so at 0.1% prevalence a large absolute false-positive count is intrinsic; a stronger model has fewer at the same sensitivity.
Stack, out-of-fold
  • pAUC @ 80% TPR (max 0.20)0.17376
  • ROC-AUC0.9666
  • Average precision0.094
  • Sensitivity / specificity @ op. point0.802 / 0.952
ROC-AUC is high, but at 0.098% prevalence precision is mathematically forced low, which is why scoring is pAUC@80%TPR, not precision or accuracy.
ISIC-2024 SLICE-3D · Pakistan.AI
Efficiency Frontier

Quality vs. Cost: Three Axes

OOF pAUC versus params, GFLOPs and CPU latency
OOF pAUC vs. parameters, GFLOPs and CPU latency; the small-backbone stack owns the knee.
ModelpAUCParams (M)GFLOPsCPU (ms)Pareto
Stack (rank-avg: GBDT + nano@224)0.1737615.842.45560.91Yes
Tabular GBDT (LightGBM + CatBoost)0.168900.860.0000.02Yes
EVA-02-small @336 (heavy ViT, dominated)0.0998421.7412.409249.18—
ISIC-2024 SLICE-3D · Pakistan.AI
Ablations

Negative Results and Leaderboard Comparison

Table 3. Added complexity that did not improve OOF pAUC@80%TPR.
Idea triedIts pAUCBeaten byHonest finding
Learned per-lesion gate (MoE)0.150070.16890 (tabular)loses to tabular alone
Meta-LGBM stacker0.171080.17376 (rank-avg)loses to rank-average
+ PCA image embeddings into GBDT< 0.173760.17376embeddings hurt
Heavy backbones (SwinV2 / EVA-02)0.104 / 0.1000.15821 (nano@224)dominated, overfit at 393 pos
EMA 0.999 (over-smoothing)~0.1460.15821 (EMA0.995)stronger EMA hurts

Every complexity increment lost on the frozen folds: each learned addition overfits the 393 positives or is dominated on cost.

Table 4. Comparison to top Kaggle solutions.
SolutionExt.Syn.pAUC
1st, Novoselskiy (EVA-02 + GBDT)YesYes0.17264
2nd, uchiyama33YesYes—
3rd, kyohei-123YesYes—
Ours (single-dataset)NoNoCV 0.17376

Champions used banned external dermoscopy and ~30k synthetic positives; their own ablation reports synthetic data added only +0.0007. Ours is OOF CV, not private LB.

ISIC-2024 SLICE-3D · Pakistan.AI
Scope

Constraints and Limitations

Self-imposed constraints
  • No external data. SLICE-3D only, no ISIC-2019/2020, no PAD-UFES, no external dermoscopy.
  • No synthetic lesions. Fabricated pathology is a label-validity hole in a medical task.
  • ImageNet-pretrained encoders allowed: no skin-cancer labels, so the no-external-data property holds.
Limitations
  • Only 393 positives bound model capacity; heavy backbones overfit.
  • OOF pAUC is 0.17376; allowing the usual public-to-private drop, we estimate private ≈ 0.16.
  • Precision at the operating point is low by construction at this prevalence.
ISIC-2024 SLICE-3D · Pakistan.AI
Closing

Conclusion

  • A small, cheap stack reaches 0.17376 OOF pAUC on a leak-verified patient-grouped split.
  • Patient-relative tabular features carry most of the score.
  • A zero-parameter rank average beats every learned combiner.
  • The result holds without external or synthetic data.
Claim

SOTA among single-dataset, no-external-data, no-synthetic solutions, reported on a quality-versus-cost frontier rather than a single leaderboard point.

At 393 positives, the efficient choices were not only cheaper, they were more accurate.
ISIC-2024 SLICE-3D · Pakistan.AI
Credits

Attribution and Lineage

Leaderboard solutions positioned against
  • 1st — I. Novoselskiy: EVA-02 + EdgeNeXt fused with a GBDT stack; used external dermoscopy and ~30k synthetic positives (both banned here).
  • 2nd — uchiyama33: image + tabular ensemble — source of the EMA + mixup recipe adopted for our small backbone.
  • 3rd — kyohei-123: image/tabular blend.
Public-notebook lineage (reused with attribution)
  • greysky — LightGBM hyperparameters and the tabular-first thesis; the bagging + undersampling structure.
  • snnclsr — tabular feature-engineering patterns and CV structure.
  • motono0223 — small-backbone image-baseline recipe.
  • andreasbis — the stacking idea: CNN OOF probability as a GBDT feature.
  • Official pAUC scorer (Kurtansky / MSKCC) vendored verbatim to verify the metric.
ISIC-2024 SLICE-3D · Pakistan.AI
References

Dataset, Metric and Methods

Dataset & metric
  • Kurtansky, N. R. et al. The SLICE-3D dataset: 400,000 skin-lesion crops from 3D TBP for skin-cancer detection. Scientific Data (2024). doi:10.1038/s41597-024-03743-w
  • International Skin Imaging Collaboration. SLICE-3D 2024 Challenge Dataset. doi:10.34970/2024-slice-3d (CC BY-NC 4.0).
  • ISIC Research / Kurtansky (MSKCC). Official ISIC-2024 scorer — partial AUC above 80% TPR, scores in [0, 0.20].
Backbones & gradient boosting
  • Woo, S. et al. ConvNeXt-V2 / FCMAE. CVPR (2023) — the primary backbone (convnextv2_nano).
  • Ke, G. et al. LightGBM. NeurIPS (2017).
  • Prokhorenkova, L. et al. CatBoost. NeurIPS (2018).
  • Wightman, R. timm (PyTorch Image Models). (2019) — backbones and the latency-axis timings.
ISIC-2024 SLICE-3D · Pakistan.AI
Pakistan.AI
Thank you
https://junaidaliop.github.io/isic2024-tbp/
Questions?
